Circuit Breaker Panel Overlay (Piper)

Circuit Breaker Panel Overlay Overview

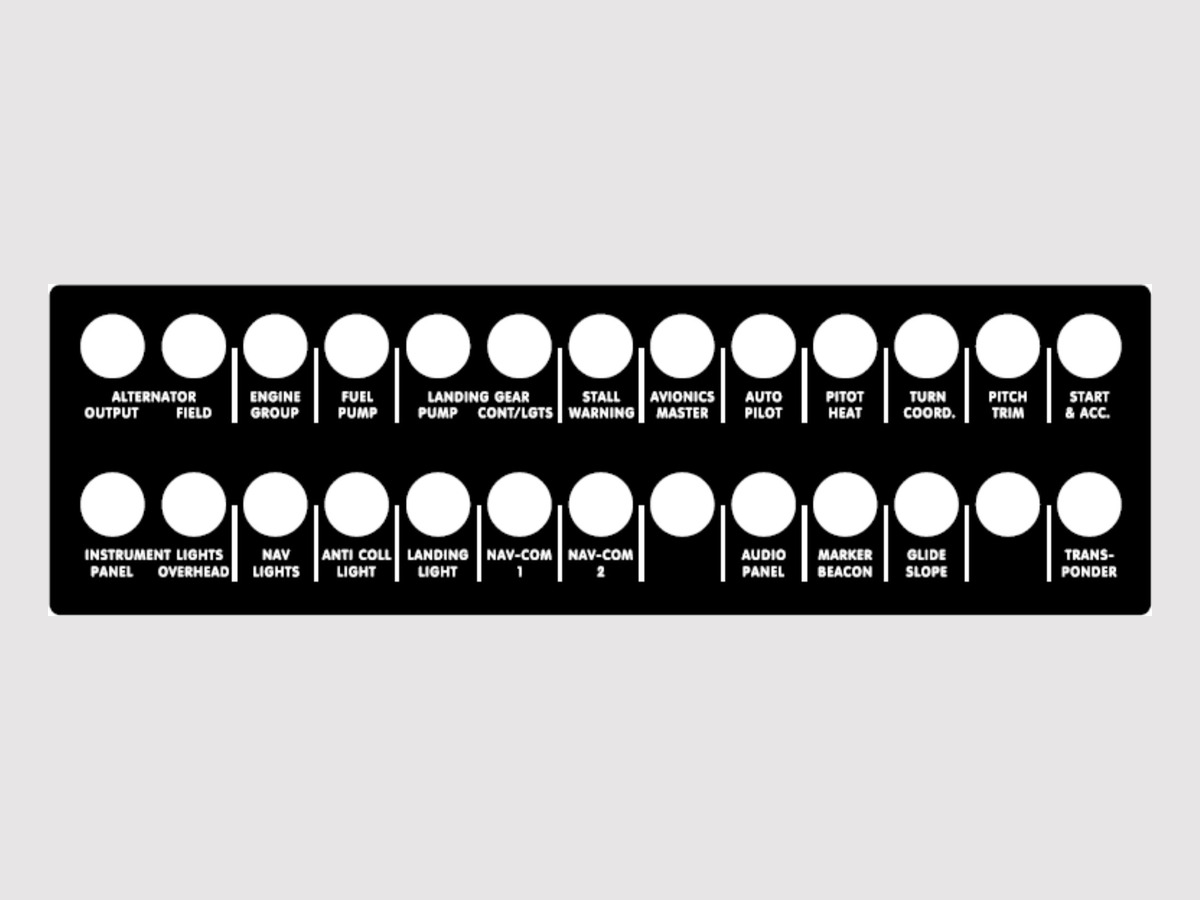

This made-to-order circuit breaker panel overlay is a single, adhesive-backed decal that lays over the top of your existing Piper breaker panel, giving it a clean, professional, and easy-to-read look. Each overlay is printed in black and white and made to your exact specifications — you provide the label for every breaker position, and we build the overlay to fit your panel and cover both the top and bottom breaker rows.

Circuit breaker panel overlays are available for standard 13- and 14-slot Piper breaker panels, each with a top row and a bottom row of labeled positions. They are a simple way to relabel a worn or modified panel without replacing it.

Overlays reproduce the labels you provide — always confirm each label against your aircraft’s actual breaker configuration and POH before installing.

Build your layout online

Skip the printing and scanning — plan your overlay right here. Choose your panel size, type the label for each breaker position (top row and bottom row), and submit. The 13- and 14-slot Piper panels are a standard size, so there is nothing to measure.

Website

Build your breaker layout online

Choose your panel size, type the label for each breaker position, and submit. We’ll send you a proof to approve before producing your overlay — no printing or scanning needed. The 13- and 14-slot Piper panels are a standard size, so there’s nothing to measure.

Panel size

14-slot 13-slot

Top row

1

2

3

4

5

6

7

8

9

10

11

12

13

14

Bottom row

1

2

3

4

5

6

7

8

9

10

11

12

13

14

Tip: each position has two lines — use them the way the label reads on your panel (for example, first line ALTERNATOR, second line OUTPUT). Fill just one line for a single-word label, and leave any unused position blank.

Photo of your current panel (optional)A clear photo helps us match your existing layout — JPG/PNG, up to 12 MB.

Your name*Email*Phone (optional)Notes (optional)

Submit my layout

Prefer paper? You can still download a 13-slot or 14-slot template and email it to us.

How it works

1. Build your layout using the form above (or a printable template below), giving us your label for each numbered breaker position.
2. We send you a proof to review. Your overlay is produced only after you approve it, and typically ships within 2 business days of approving your layout.

Prefer paper? Printable templates

You can also download a template, mark up your breaker labels, and email it to [email protected] or send it through our contact page:

Download 14-slot template (PDF)Download 13-slot template (PDF)

Materials & durability

Each circuit breaker panel overlay is finished with a Lexan over-laminate, making it virtually scratch- and abrasion-proof for years of cockpit service. The black-and-white print stays sharp and legible, and the overlay sits flat over your existing panel for a factory-clean appearance. Because every panel is built from your approved list, the finished overlay matches your aircraft exactly and stays easy to read at a glance during flight.

Whether you are refreshing a faded factory panel or relabeling breakers after an avionics upgrade, a made-to-order overlay is a quick, affordable way to restore a clean, legible breaker panel.
