Piper throttle quadrant overlays replace the worn labeling on the power-control quadrant — throttle, propeller, and mixture — in Piper cockpits. This sub-category covers overlays for fixed-pitch and constant-speed propeller installations, including press-to-release quadrants, for both PA-28 and PA-32 airframes.
Quadrant labeling depends on your propeller type and airframe, so match the control layout — fixed pitch vs. constant speed, and whether your levers use press-to-release — to the overlay you order. Each overlay is thermally printed on 3M Scotchcal 220 cast vinyl with a Lexan over-laminate for a durable cockpit finish. Your aircraft POH/AFM and parts manual are the final authority — confirm the correct overlay against your model and serial before ordering. Not sure which fits your quadrant? Contact us.

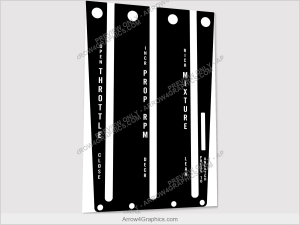

The Piper PA-32 Throttle Quadrant Overlay Press-to-Release version labels Throttle, Prop RPM, and Mixture, plus the mixture press-to-release strip — for PA-32 aircraft with the later release-lock quadrant: Cherokee Six 260/300, Lance, Lance II, and Saratoga.
The Piper PA-32 Throttle Quadrant Overlay Constant Speed version labels Throttle, Prop RPM, and Mixture for early Cherokee Six (PA-32-260 and PA-32-300).
The Piper Throttle Quadrant Overlay Press-to-Release version labels Throttle, Prop RPM, and Mixture, plus the propeller-lock release strip.
The Piper Throttle Quadrant Overlay Constant Speed version labels Throttle (Open/Close), Prop RPM (Incr/Decr), and Mixture (Rich/Lean).
The Piper Throttle Quadrant Overlay Fixed Pitch version labels the two controls — Throttle (Open/Close) and Mixture (Rich/Lean).
